BL-H01
Beautylife
118*50*48cm
Water content, protein, inorgan
CE, EMC
Body composition analyzer
BL-H01

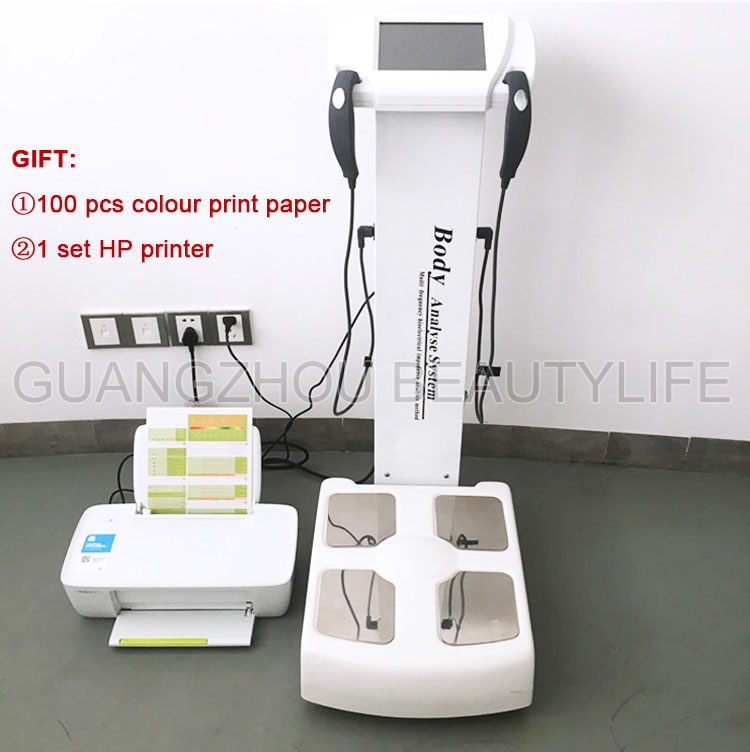

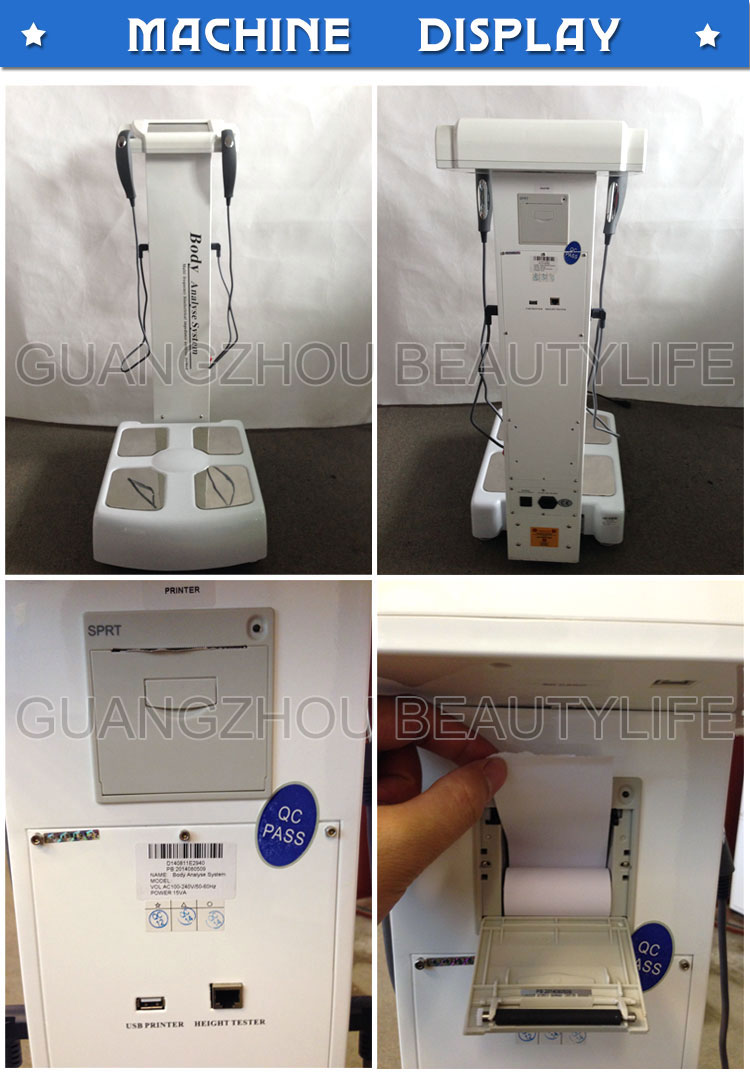

Human body composition analyzer BL-H01
Body composition analyzer for sale
Introduction:
Human body elements analyse instrument can detect various elements of human body and analyse human health status, which applies the accurate measurement of AVR micro computer controller, bases on new statistics method DXA, analysis human elements: fat, weight,BMI, non-fat and other health indicators through multi-frequency bioelectrical impedance analysis scientific basis for losing weight effectively. Which is considered as an epoch-making results of the health industry. It is health for each test, thus develop new treatments analysis of health data to lose weight. Apply to hospitals, beauty clubs, sports and scientific research centers, institutions and enterprises, government agencies, sports clubs, health management and accessing agencies, it can help people evaluate their body state accurately. Because it has the functions of human body elements analyse, muscle and fat analyse, obesity analyse and healthy assessment.
It can analysis WEIGHT, FAT, FFM (Free Fat Mass), Muscle, Bone, Protein, Water, PBF (Percent Body Fat), TBW (Total Body Water), MBI (Body Mass Index), WHR (Waist-Hip Ratio) of body.
Theory:
1.Using principles of human biotechnology.
2. 8 Point -electrode contact: There are two parts of each electrode used to measure the human body's elements and also to be used to measure the elements in various parts of the body's resistance value in accurately.
3.Use of multiple regression analysis of the frequency and increase the scope of testing to enhance accuracy.
4. Implementation of intelligent control, touch-operation; visualization application interface, allowing users to learn easy, safe and easy to operate.
5.Can store up to 120 complete historical records.
6. The structure of a clear, easy to install and easy to maintain.

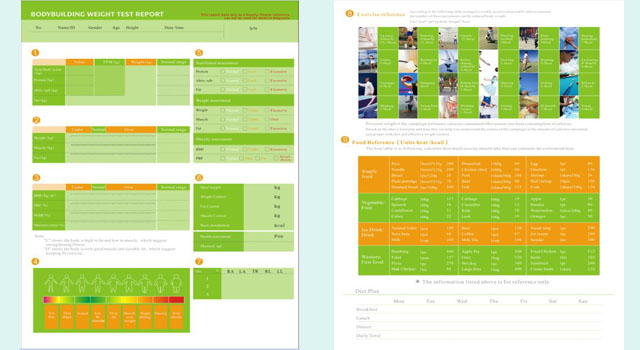

7.The results of the analysis in order to be able to approach the output statements to clients.
Health dates:
1. Body composition: Water content, protein, inorganic salt, bone mass
2. Musle fat analyzing: Body weight, skeleton weight, fat weight.
3. Obesity analysis: Weight, fat weight, WHR, water ratio, B. M. R
4. Obsesity diagnosis
5. Comprehensive assessment
6. Weight control
7. Exercise intensity
8. Dietary reference intake.
9. Health evaluation
Specification:
Test Method | Multi-frequency bioelectrical impedance analysis (MFBIA) |
Test Part | bioelectrical impedance analysis on the part of left upper limb, right upper limb, trunk, left lower extremity, right lower extremity |
Test Frequency | Three differenct frequency(20KHZ, 50KHZ, 100KHZ) |
Electrode Method | 8 point contact eletrode |
Computing method of body components | Do not estimate through empirical value |
Output Value(25) | TBW, protein, mineral salt, Body fat, bone weight, Weight,IBW, fat-free weight, SMM(Skeletal muscle), BMI(Body mass index), PDF(percentage of body fat), WHP(waist-hip ratio),moisture ratio, Obesity diagnosis, nutritional assessment, Weight assessment, obesity assessment, Goal weight,Weight control,Fat control, Muscle control, Health assessment, basic metabolism, bioelectrical impedance. |
Rated current | less than 180μA |
Power | Input power: AC100~240V, 50/60HZ |
Screen | 320*240 STN LCD Touching Screen |
Operation Language | English and Multiple Language Option |
Values Storage | 50000×10 and SD Card unlimited expansion is available |
External Storage | SD Card tranfer to computer for large storage |
External Interfaces | RJ-45, USB2 |
Printer Interfaces | USB |
IC Card System | standard IC card control |

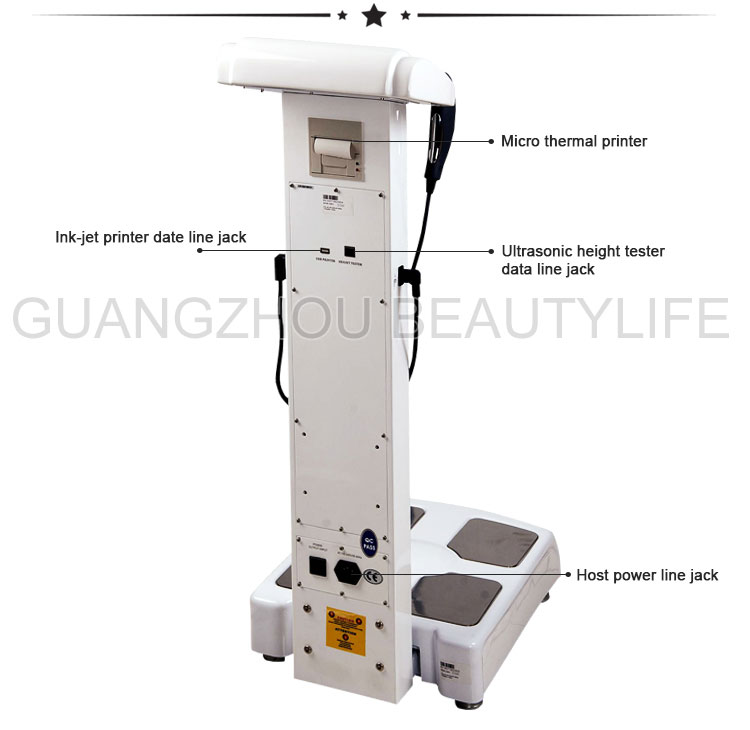

Printer | A4 color paper ink-jet printer(manufacturers appoint the model), internally installed thermal printer |
MEAS. Of Package | 49CM*50CM*118CM, GW: 40KG; NW:32KG. MEAS. Of printer package: 63CM*44CM*38CM |
Test time | No more than 2 minutes |
Operation Environment | Temperature: 10~400°C(50~1040°F),humidity: 30~80%RH, 500~600hPa |
Conservation Environment | Temperature: 0~400°C(32~1040°F),humidity: 30~80%RH, 500~600hPa |
Test scope of weight | 10~200Kg; Test scope of age: 10~99 ages; Test scope of height: 90~200cm |
External expansion project | Ultrasonic Height Measurer(selective purchasing) |
