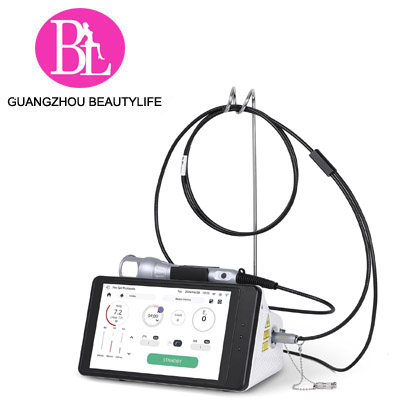

Laser pain therapy machine BL-CH02

laser pain therapy, Laser therapy for pain relief, laser therapy, 980nm diode laser pain relief, laser therapy machine, laser therapy for pain,laser physiotherapy, pain therapy
Quantity:
  • BL-CH02
  • Beautylife
  • CE
  • Laser pain therapy
  • 980nm diode laser
  • 0.1W-15W
  • 1-10HZ frequency
  • Color LCD touch screen
  • 10-300ms
  • 8.0TFT Ture Color LCD touch screen

Laser therapy for pain relief BL-CH02

Laser pain therapy machine

Laser Therapy:

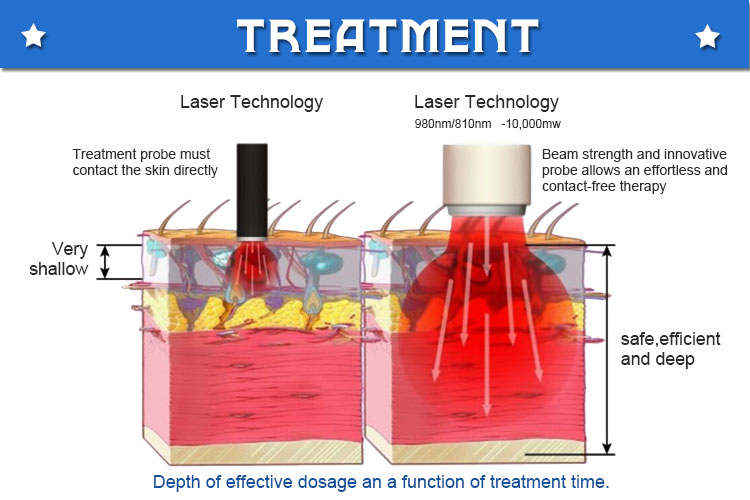

Laser Therapy is used for the relief of pain, to accelerate healing and decrease inflammation.When the light source is placed against the skin, the photons penetrate several centimeters and get absorbed by the mitochondria, the energy producing part of a cell. This energy fuels many positive physiological responses resulting in the restoration of normal cell morphology and function. Laser Therapy has been successfully used to treat a broad range of medical conditions, including musculoskeletal problems, arthritis, sports injuries, post-surgical wounds,diabetic ulcers and dermatological conditions.
The central goal of laser therapy is to stimulate the cell to perform its natural functions,

but at an enhanced rate. Targeted in hemoglobin and cytochrome c oxidase, the high power diode laser could help the respiration and then in result have a good performance therapy. In sharp contrast to “Cold lasers” which provide no feeling or sensation, high power diode laser therapy will provide warm and smoothing feeling. Unlike many pharmacological treatments that mask pain or only address the symptoms of disease, Laser Therapy treats the underlying condition or pathology to promote healing. This means that the treatments are effective and the benefits of Laser Therapy are long lasting.

laser therapy for pain

980nm diode laser therapy

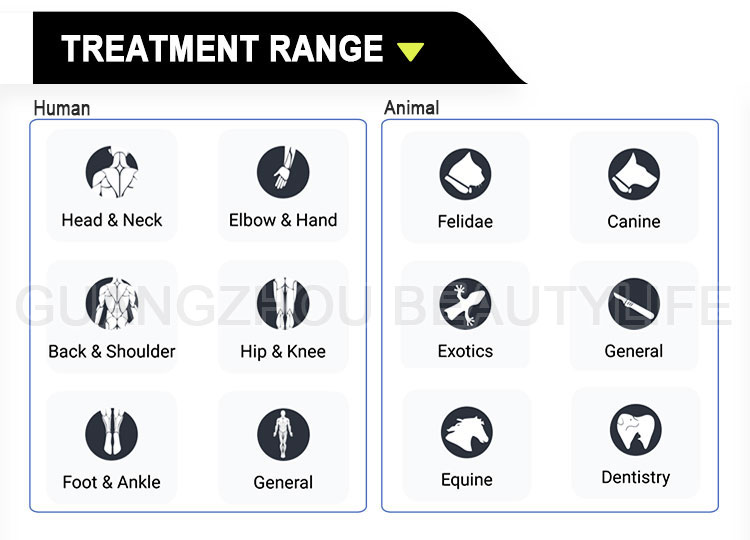

Applied range:

laser therapy body parts

1.Tennis elbow

Painful inflammation of the tendon attachment on the lateral elbow
2.Shoulder pain with or without calcification
Painful limitation of shoulder movement
3.Golfer's elbow
Painful inflammation of the tendon attachment on the medial elbow
4.Bursitis trochanterica
Painful periostitis of the hip
5.Patella tip syndrome
Inflammation of the tibial edge due to excessive strain
6.Tibial edge syndrome
Inflammation of the tibial edge due to excessive strain
7.Achillodynia
Painful irritation of the achilles tendon
8.Painful heel
Painful,mostly chronic inflammation of the heel
9.Inflammation of the tendon attachment
Painful inflammation of tendon attachments due to overexertion or improper strain,
or due to degenerative processes
10.Acupuncture points
Pain therapy through that treatment of acupuncture points
11.Painful trigger points
Acute and chronic pain in the back,shoulder,neck,etc.due to permanently shortened

and thickened muscles

laser therapy for pain

What are the Benefits of Laser Therapy?

1. Treatment is painless

2. Highly effective for many diseases and conditions

3. Eliminates pain

4. Reduces the need for pharmaceuticals

5. Restores normal range of motion and physical function

6. Easily applied, non-invasive, non-toxic

7. No known adverse effects, no drug interactions

8. Often makes surgical interventions unnecessary

9. Provides a treatment alternative for patients that have not responded to other therapies

laser back pain therapy

Specification:

Laser Type

Semiconductor laser

Model

BL-CH02

Wavelength

980nm±10nm

Output power

0.5W-15W

Operation mode

CW, Single, Repeat

Pulse width

25μs -0.5s

Pulse repetition rate

1Hz-20KHz

Application / Light delivery system

Core Size (Use only approved systems)≥200µm

Numerical Aperture

NA = 0.22 – 0.48

Fiber Connector

SMA 905

Aiming Beam

Diode laser of 650nm±10nm, 4mW (max), adjustable   brightness.

Laser Class

4

Operation interface

Color LCD touch screen

Power Supply

Model: FSP105-KGAM1

input: 100-240Vac 1.4-0.7A , 47-63HZ

output: 15V-6.79A Max

Cooling

Air cooling

Safety classification

ClassⅠType B

Dimensions

186(W)*172(L)*260(H)mm

Weight

2.2 kg

Operating Temperature

10℃~40℃(In order to better heat dissipation, it is   recommended to use temperature of 10-35 ℃)

Storage/Transport Temperature

-10 to +50

Humidity

Storage/Transport : 10% - 80%,

Operating: 30% - 60%

Waterproof level

IPX1

Footswitch Waterproof level

IPX8

Safefy Compliance

CE 0197
