RF tube CO2 fractional laser BL-F03

fractional co2 laser,co2 fractional laser,laser equipment co2 fractional,fractional co2 laser equipment,co2 fractional laser machine,co2 laser fractional
Quantity:
  • BL-F03
  • Beautylife

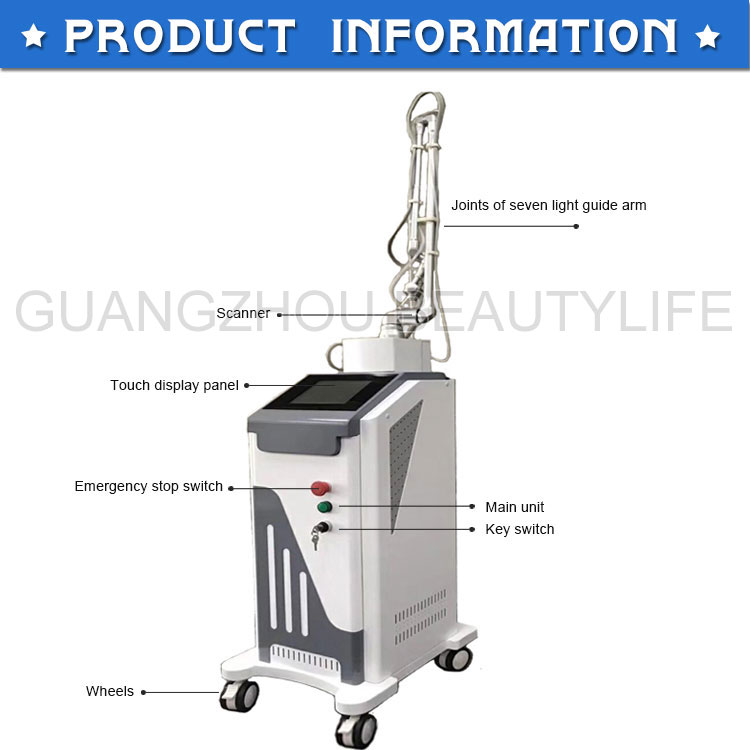

RF tube CO2 fractional laser BL-F03
Principle:

Fractional photo thermolysis creates an array of microscopic thermal wounds, called

microscopic treatment zones, at specific depths. Unlike other ablative and nonablative

lasers, which produce layers of thermal heating, the creates microscopic columns of

thermal damage, sparing surrounding tissues and promoting more rapid healing. The treatment results which are collagen remodeling and

skin turnover are excellent. Removing lentigines and other discolorations and producing fresher, tighter,

and more youthful skin could be little to no downtime.

fractional co2 laser

fractional co2 laser

Applications:

1. Reduce lines and deep wrinkles on the face
2. Tighten skin on the face and neck
3. Improve skin tone around eyelids, jowls and neck
4. Rejuvenate sun-damaged skin and improve texture
5. Remove pigmented lesions
6. Improve tone and texture on the chest, arms, and hands

7. Change the appearance of scars.

fractional co2 laser treatment

rf tube fractional co2 laser

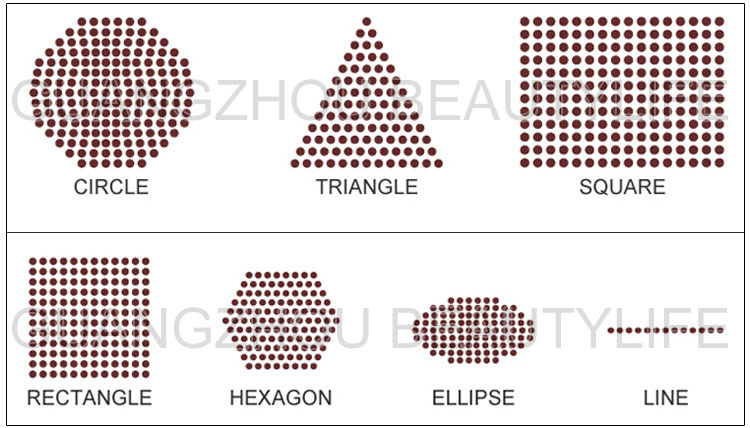

Fractional laser Scan graphics:

laser co2 fractional

Advantages:
1.Scan mirror:made in Germany, so the accuracy of the treatment is very good, the speed  is fast, then the treatment is very good.
2. Guide light arm: 7 joint articulated arm, high quality, accuracy is great.
3.Company only 500HZ/s. so the energy is high, treatment speed is fast, skin damage is  small.
4.Pot diameter is small, so the treatment spot is small, wound area is small, recover much  faster.
5.Every spot is same, include the depth, size, and no miss spot in the treatment area,
shape is not any distortion. other company's spot are not same size and same depth.
6.Speed is more than 10m/s, so the thermal damage is small, and less pain.
7.Density, depth, and shape, all can be adjusted, very convenient.
8.Scan models: free scan, sequence scan, maximum distance scan, free scan and maximum  distance scan technology, diffuse the heat of adjacent organizations, not form.
9. Heat buildup, reduce thermal damage and reduce the various complications.
10.Four treatment heads, can be used for different treatment, very convenient.
11. 7 different scan shape ,adapt to different customer’s request.
12. Distance: 0.1mm-2.6mm, lots of other company only reach 2mm.

13. Power: 40 W, but lots of company 12W,15W

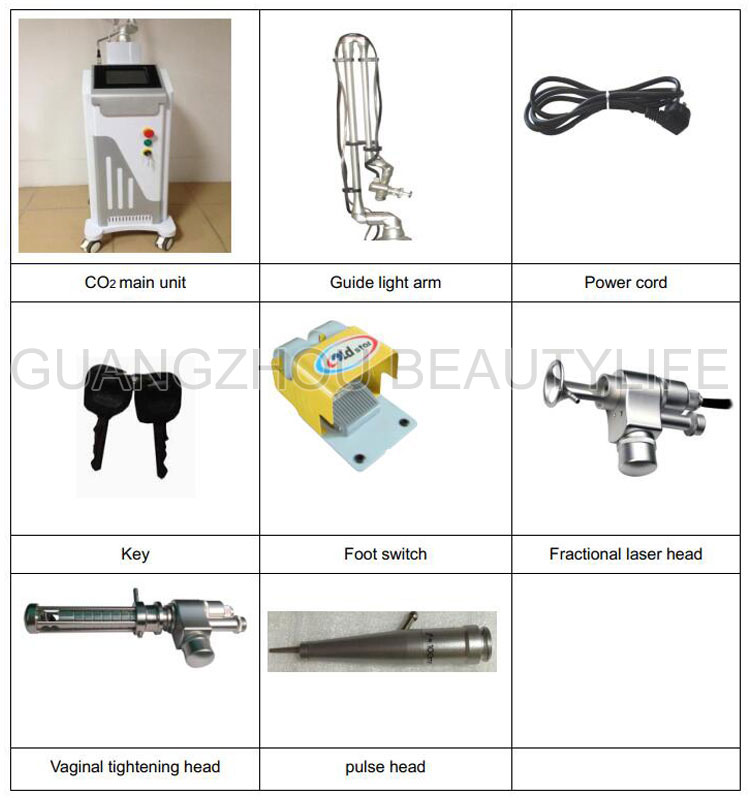

Fractional co2 laser spare parts:

fractional laser co2

laser treatment

Specification:
Wavelength:
10600nm
Laser apparatus:
Sealed off laser device simulated by direct current
Optical beam quality:
TEM00
Output power:
20w
Spot size:
0.02~0.05mm2
Aiming beam:
Red semiconductor laser (635nm, less than 5mw)
Beam transport device:
Articulated arm with 7-joint and balance weight
Working mode:
Continuous operation
Output Mode:
Continuous, single pulse, interval pulse and super pulse
Scan scope:
Max 20mmx20mm
Scan graphics:
Circle, triangle, square, rectangle,hexagon, ellipse, line
Scanning Mode:
Random , Normal and Midsplit scan
Scanning speed:
More than 10m/s
Energy:
20W
Pulse width
0.1-5.0ms
Distance:
0.1-2.6mm
Input power:
450VA
Cooling system:
Water and air circulation
Environment temperature:
5°C~40°C
Relative humidity:
Less than 80%
Power:
110V / 220V
